Product Description

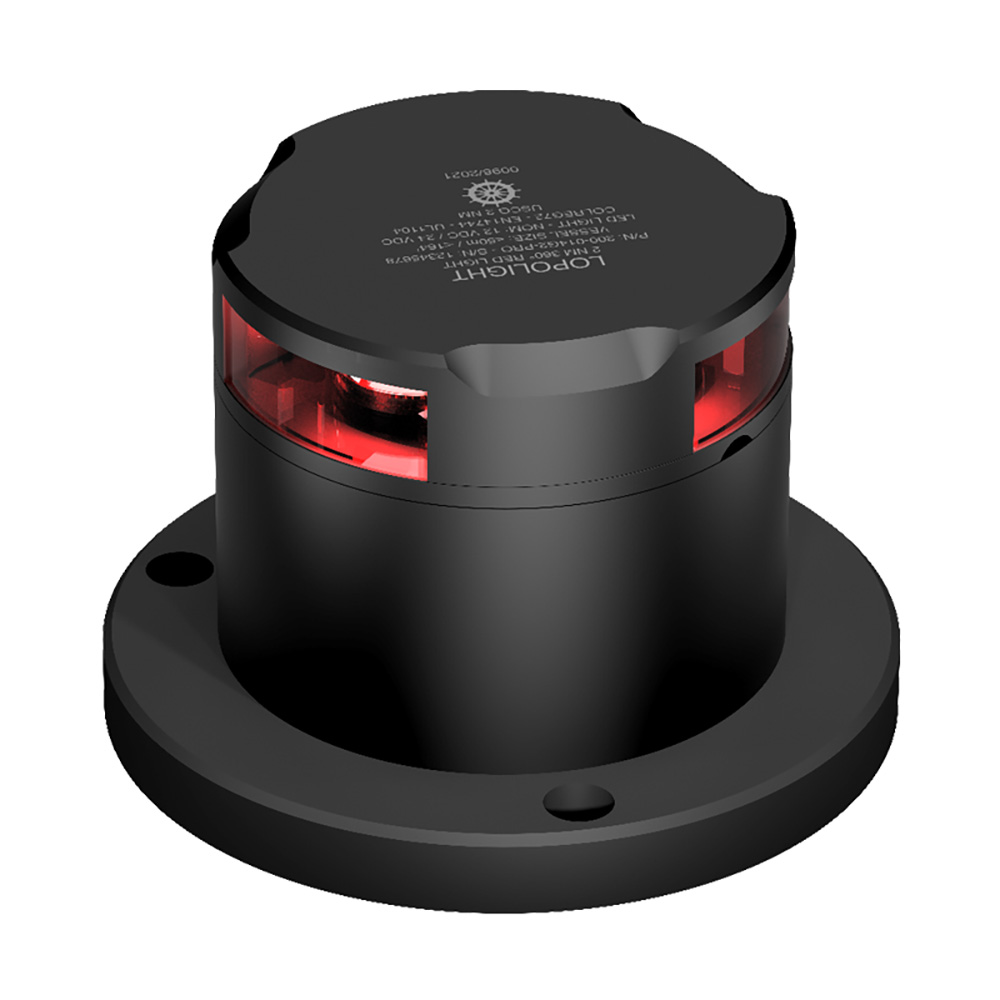

360-Degree Pro Red Nav Light - 2NM - Black Housing
This 360-degree navigation light has a red color and black housing while having up to 2 nautical miles of visibility.
Features:
- Horizontally mounted on POM base (IP68)
- Side cable direction
- Included HDPE base plate
- Quality Cable Glands (2 sizes Included):7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438012134
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red
- Intensity: >5.4cd
- Visibility: 2NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: Plug connector
- Current Consumption (mA @ 24VDC): 85
- Current Consumption (mA @ 12VDC): 150
- Weight: 1 kg (35.27 oz)
- Dimensions Metric: Ø92,5mm x 75mm
- Dimensions Imperial: Ø3.6 x 2.9
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2,1
- Vessel Size: Under 12M,12-20M,20-50M
